Brass Union Gate Valve With Red Handle 1/2"-2" Customized Size Anti-corrosion

Brass Union Gate Valve With Red Handle 1/2"-2" Customized Size Anti-corrosion
Brass Union Gate Valve With Red Handle 1/2"-2" Customized Size Anti-corrosion Brass Union Gate Valve With Red Handle 1/2"-2" Customized Size Anti-corrosion Brass Union Gate Valve With Red Handle 1/2"-2" Customized Size Anti-corrosion Brass Union Gate Valve With Red Handle 1/2"-2" Customized Size Anti-corrosion

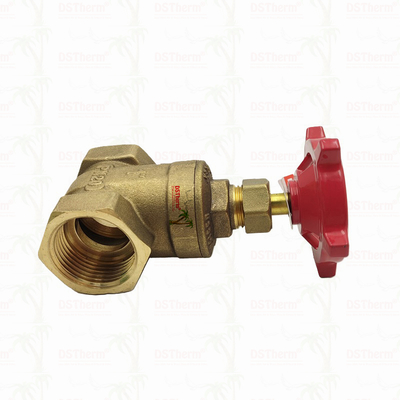

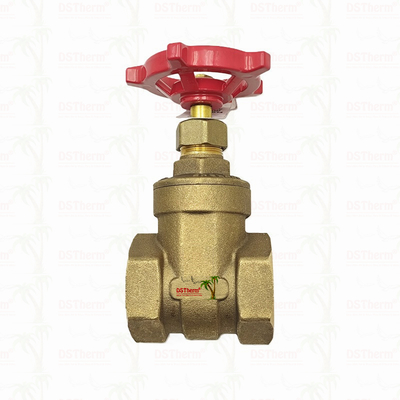

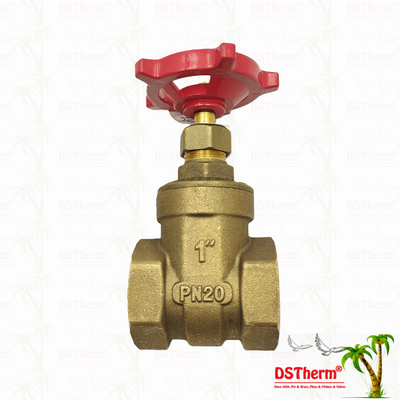

큰 이미지 :  Brass Union Gate Valve With Red Handle 1/2"-2" Customized Size Anti-corrosion

제품 상세 정보:
Place of Origin: Zhejiang China
브랜드 이름: DSTHERM/OEM/CUSTOMIZED
인증: ISO CE
Model Number: 1/2" - 2"
결제 및 배송 조건:
Minimum Order Quantity: Negotiation
가격: 협상 가능
Packaging Details: Nylon bag and carton
Delivery Time: Dstherm brand: 14 days/Customized brand: 30 days
Payment Terms: L/C,T/T
Supply Ability: 20-40 days (Depends on order time and product materials and processes)

Brass Union Gate Valve With Red Handle 1/2"-2" Customized Size Anti-corrosion

설명
Product Name: Brass Union Gate Valve Color: Brass Color
Size: 1/2" - 2" Standard: ISO CE
Material: Brass CW617N Customized Feature: Anti-corrosion
Working Pressure: PN20 / Customized MOQ: 1000 pcs

Specification


Brass Union Gate Valve With Red Handle 1/2"-2" Customized Size Anti-corrosion 0


What is Gate Valve?


The Gate Valve is a shut-off valve that uses a vertically raised gate to fully open or close the pipeline fluid.


Feature


  • Pressure level: PN20 (≈Class 150), medium and low pressure valve, suitable for conventional industrial and civil systems.
  • Flexible size: standard caliber ½"~2" (DN20-DN63), support size customization, adapt to non-standard pipeline requirements.
  • Reliable material: brass valve body, resistant to water erosion, antibacterial, suitable for mild media such as water/gas/oil.
  • In-depth customization: customizable handwheel style and brand logo to meet brand identification or operating environment requirements.
  • Compliance: Complies with international standards (such as ISO/EN/ASME) to ensure versatility and safety.


Brass Union Gate Valve With Red Handle 1/2"-2" Customized Size Anti-corrosion 1


Functions


  • Fluid cutoff: dedicated to full open/full closed control of pipeline media (not suitable for flow regulation).
  • Low flow resistance design: the channel is straight when fully open, and the fluid resistance is extremely small.
  • Bidirectional sealing: supports forward/reverse installation and blocks the bidirectional flow of media.


Brass Union Gate Valve With Red Handle 1/2"-2" Customized Size Anti-corrosion 2


Application


  • Building pipelines:
  • Hot and cold water systems, fire protection pipelines (low-pressure end), HVAC water circulation.
  • Industrial equipment:
  • Compressor air pipelines, low-pressure oil lines, general industrial water treatment systems.
  • Customized requirements:
  • Equipment matching (such as boilers, water tank units), OEM labeling (Logo customization), special space installation (handwheel size adaptation).


Brass Union Gate Valve With Red Handle 1/2"-2" Customized Size Anti-corrosion 3


Advantages


1. Flexible customization, strong adaptability
Non-standard size customization (breaking the ½"~2" limit) to meet special pipeline needs.

Handwheel/Logo personalization, strengthen brand recognition, adapt to OEM equipment integration.


2. Brass material, outstanding cost performance
Corrosion resistance + antibacterial property: better than cast iron, suitable for mild media such as water, gas, oil (such as domestic water supply, HVAC system).

Cost advantage: lower price than stainless steel gate valve, suitable for budget-sensitive projects.


3. Compliance, reliability, universal and convenient
PN20 pressure level: covers most civil and industrial low-pressure scenarios (≈Class 150).

Comply with international standards: directly compatible with global mainstream pipeline systems, reducing certification risks.


Brass Union Gate Valve With Red Handle 1/2"-2" Customized Size Anti-corrosion 4


Notes

  1. Prohibited scenarios: high-temperature steam (>150℃), highly corrosive media (such as chloride ions), and fluids containing solid particles.
  2. Advantage areas: cost-sensitive projects, standardized replacement upgrades, and brand visualization requirements (such as project acceptance marks).


QC

· We promise to supply you high quality and durable goods for you.

· Our worker will check every accessory before hand-assembled.

· Our quality inspector will check every product one by one before packing.

· Regular checking on line from production in each workshop


Brass Union Gate Valve With Red Handle 1/2"-2" Customized Size Anti-corrosion 5


Production step


1) purchasing the material and forged the semi-products .

2) processing the semi-products in workshop .

3) assembling the goods .

4) testing the sealing in pressure and checking quality of the goods

5) package

6) deliveing the goods on time.


Package


1) the package standard : standart export carton, box .

2) if customer has special requirement. it is available to provide the colorful package against the design of customer.


Brass Union Gate Valve With Red Handle 1/2"-2" Customized Size Anti-corrosion 6


We Will Be Your Better Choice!
