제품 상세 정보:
|

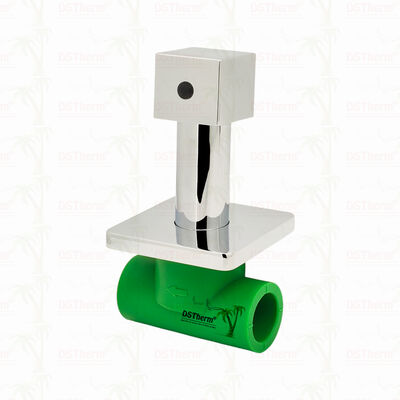

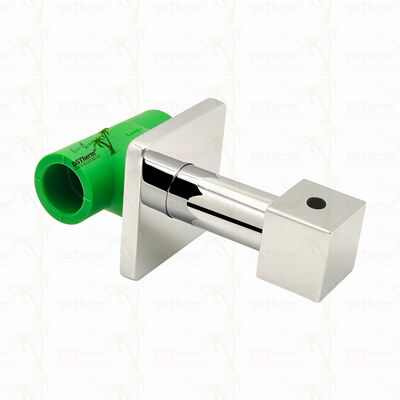

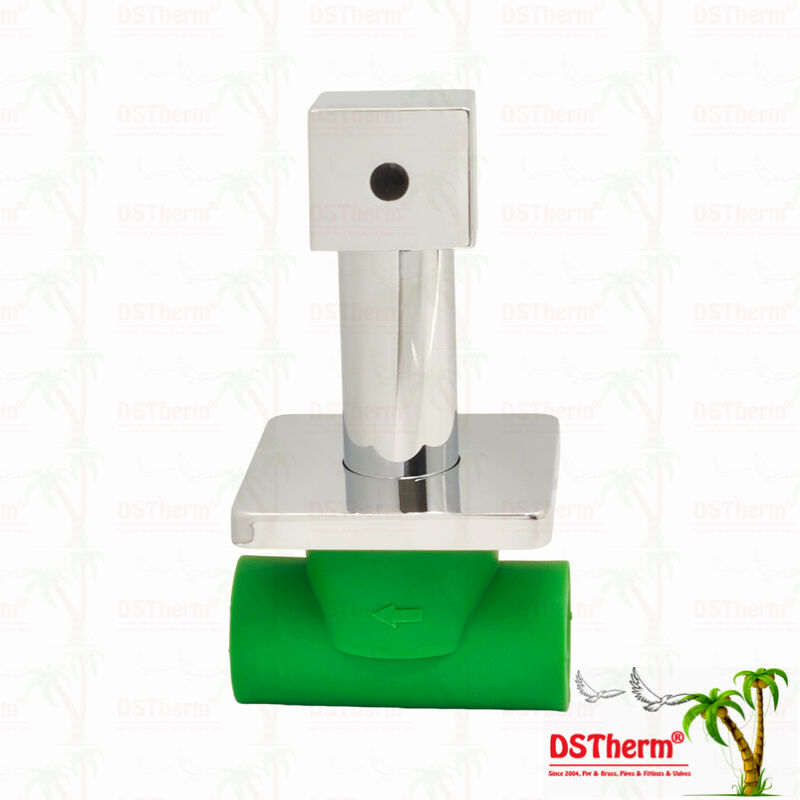

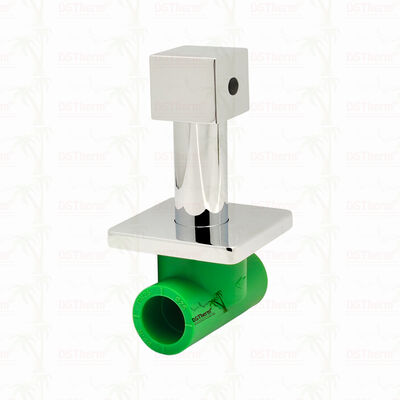

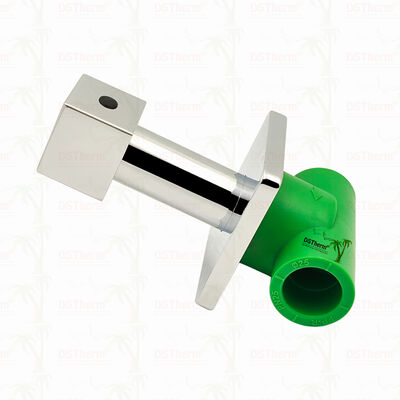

| 제품명: | 큐브 핸들이 있는 PPR 스톱 밸브 | 색상: | 회색, 녹색, 검정색, 필요에 따라 |
|---|---|---|---|
| 크기: | 20-32mm | 프로세스: | 사출 성형 |
| 재료: | PPR+황동 카트리지+크롬 도금 | 포장 세부 사항: | 표준 수출 포장 또는 고객 요청 |
| 응용: | 온수 및 냉수 시스템 | 배달 시간: | 지불 후 35 일 안에 배송되었습니다 |
Specification
| PPR Stop Valve With Brass Cartridge | Size |
 |
20mm |
| 25mm | |
| 32mm |
We have Stop Valve with specifications ranging from 20mm to 32mm. You can also customize different specifications, color and materials.
Main Components of a Stop Valve
Stop Valve vs. Gate Valve – Comparison
| Stop Valve | Gate Valve | |
| Main Function | Shut-off and throttling / regulating | Primarily for full open or full close, not for throttling |
| Flow Path Shape | Tortuous, S-shaped flow path | Straight, unobstructed flow passage |
| Flow Resistance | High (large pressure drop) | Low (small pressure drop) |
| Installation Direction | Directional (media must enter from below and exit above) | Non-directional (can be installed in either flow direction) |
| Appearance | Longer in length and shorter in height for same nominal size | Shorter in length and taller in height for same nominal size |
| Applicable Size | Mainly used for small bore sizes (e.g., DN ≤ 50 mm) | Commonly used for large bore sizes (e.g., DN ≥ 50 mm) |
Applications
Our advantages
1). Over 20 Years' Experience in production
2). Accept OEM Order
3). ISO9001 approved
4). We use All New raw material in products
5). Sufficient products with complete specifications for your choice
We will be your better choice!
